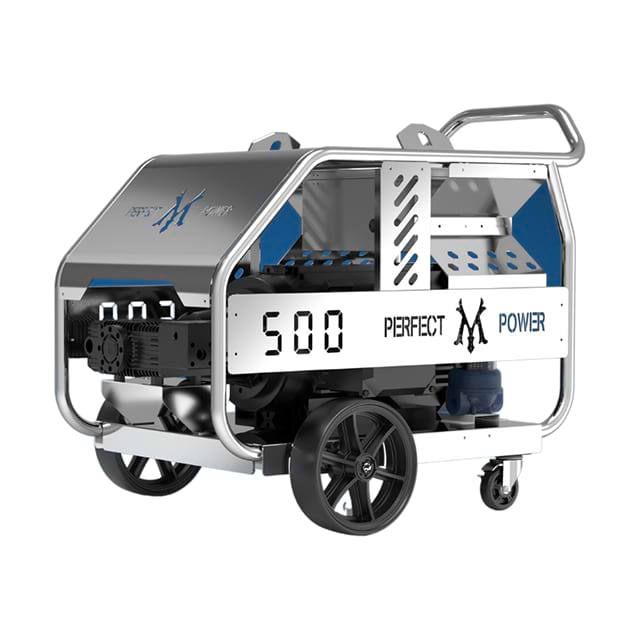

Step into a new era of industrial surface maintenance with an enclosed high-pressure system meticulously engineered for the most punishing operational environments. When you approach the unit, the sleek, natural stainless steel finish immediately communicates industrial-grade resilience, reflecting a craftsmanship dedicated to long-term survival in harsh conditions. Beneath the heavy-duty enclosed chassis, a formidable 22 kW pure copper 4-pole motor operates with a low, steady hum, driving a heavy-duty plunger pump that consistently delivers a striking 500 bar of water pressure. Every internal component, from the precision-cast aluminum alloy bell housing to the reinforced industrial coupling, is machined to eliminate vibration and ensure seamless torque transfer. The fully enclosed architecture not only dampens operational acoustics but also serves as an impenetrable shield against moisture, airborne particulates, and corrosive chemical overspray. Operators will appreciate the tactile feedback of the integrated regulating and safety relief valves, offering exacting control over the 22 L/min flow rate. Whether deployed in maritime shipyards, heavy manufacturing facilities, or municipal infrastructure projects, this system transforms grueling surface preparation tasks into a streamlined, highly predictable process, drastically reducing downtime and elevating overall site productivity.
Performance | Specification |
Operational Output | 500 bar / 22 L/min |
Rated Power | 22 kW |
Motor Configuration | Pure copper 4-pole design |
Starting System | Direct-On-Line (DOL) Starting |
Chassis Design | Corrosion-Resistant Stainless Steel Chassis |
Surface Finish | Natural Stainless Steel Finish |
Bell Housing | Aluminum Alloy Construction |
Coupling System | Reinforced Industrial Coupling |
Filtration System | Standard 180 Mesh Filtration |
Pressure Control | Regulating Valve + Safety Relief Valve |
Spray Assembly Rating | 60 MPa / 40 L/min |
System Classification | Corrosion-Resistant Industrial Water Jetting System |
Industrial operations demand equipment that outlasts the toughest challenges. This high-pressure water jetting system is designed to maximize operational uptime while minimizing maintenance overhead. By integrating advanced hydraulic architecture with rugged structural engineering, it provides a superior return on investment for large-scale industrial portfolios.
Unyielding Power Delivery: Harnesses a massive 500 bar pressure threshold to obliterate stubborn industrial scale, rust, and hardened deposits.
Thermal and Acoustic Insulation: The enclosed structural design significantly reduces noise pollution while maintaining optimal internal operating temperatures.
Vibration Mitigation: Engineered with a reinforced transmission architecture and aluminum alloy bell housing to ensure smooth, stable power transfer during peak loads.
Rapid Deployment: Features a Direct-On-Line (DOL) starting mechanism, allowing operators to initiate full-voltage startup instantly without complex calibration.
Operator-Centric Ergonomics: Designed with accessible maintenance points and intuitive pressure control interfaces to streamline daily servicing routines.
Maintaining a secure and compliant work environment is paramount for large-scale industrial facilities. This system introduces a fully enclosed structural paradigm that fundamentally transforms site safety. The heavy-duty acoustic canopy acts as a robust barrier, containing high-pressure water mist and hazardous debris within the operational footprint.
Acoustic Dampening: The insulated enclosure drastically lowers decibel output, protecting operators from auditory fatigue and meeting strict industrial noise regulations.
Environmental Shielding: Impervious to wind, rain, and abrasive dust, the sealed platform ensures internal components remain pristine even in harsh outdoor climates.
Hazard Containment: Prevents the dangerous spread of high-velocity particulate matter, keeping the surrounding workspace clean and hazard-free.
Thermal Protection: Shields operators from accidental contact with high-temperature engine and pump surfaces during extended operational cycles.
Uninterrupted productivity is the lifeblood of commercial operations. Built to endure grueling, multi-shift schedules, this equipment thrives under continuous-duty demands. The synergy between the 22 kW pure copper 4-pole motor and the heavy-duty plunger pump guarantees a relentless 500 bar output without pressure degradation.
Sustained Output: Delivers a consistent 22 L/min flow rate, ensuring massive surface areas are cleaned with uniform precision.
Heavy-Duty Plunger Pump: Crafted from wear-resistant alloys to withstand the immense internal stresses of continuous high-pressure hydraulic cycles.
Optimized Torque Transfer: The industrial-grade coupling system prevents energy loss, translating maximum motor power directly to the water jetting mechanism.
Thermal Endurance: The pure copper motor windings provide superior heat dissipation, preventing thermal throttling during marathon cleaning sessions.
Equipment degradation eats into profit margins. To combat this, every structural element of this system is forged from premium, corrosion-resistant materials. The natural stainless steel finish is not merely aesthetic; it is a critical defense mechanism against the highly corrosive agents frequently encountered in chemical plants, marine docks, and heavy manufacturing sectors.
Stainless Steel Chassis: The enclosed platform defies oxidation, rust, and chemical pitting, ensuring decades of structural integrity.
Aluminum Alloy Bell Housing: Combines lightweight properties with immense structural rigidity, protecting the transmission while resisting moisture-induced decay.
Chemical Resistance: Engineered to withstand accidental exposure to harsh industrial solvents and cleaning agents without surface degradation.
Rigid Framework: The reinforced base eliminates chassis flex under extreme hydraulic loads, preventing micro-fractures over the equipment's lifespan.
The greatest threat to any high-pressure hydraulic system is microscopic waterborne debris. Recognizing this, we have integrated an uncompromising defense mechanism right at the inlet. The standard 180-mesh filtration system acts as an impenetrable vanguard, meticulously stripping away abrasive particulates before they can breach the core pump architecture.
Micro-Particulate Capture: The ultra-fine 180-mesh screen traps sand, scale, and organic matter, preventing catastrophic scoring of the internal plungers and valves.
Extended Component Lifespan: By ensuring only purified water enters the high-pressure chamber, the wear and tear on critical seals and O-rings is drastically minimized.
Reduced Maintenance Intervals: Less internal abrasion translates directly to fewer emergency breakdowns and significantly lower replacement part expenditures.
Visual Inspection Capability: Designed for quick access, allowing maintenance crews to rapidly assess and flush the filter without specialized tooling.
Complex machinery should not require a steep learning curve. This system empowers operators with an intuitive, highly responsive control architecture that eliminates guesswork. The Direct-On-Line (DOL) starting system bypasses convoluted electronic sequences, delivering immediate, full-voltage power with a single mechanical action.
Tactile Pressure Regulation: The highly responsive regulating valve allows operators to dial in the exact pressure required, from delicate equipment washing to aggressive concrete scarification.
Fail-Safe Relief Mechanism: An integrated safety relief valve automatically diverts excess pressure, instantly neutralizing potential over-pressurization hazards.
Simplified Interface: Stripped of fragile touchscreens, the robust mechanical controls are easily operable even while wearing heavy industrial safety gloves.
Predictable Response: The direct mechanical linkages provide immediate feedback, allowing operators to feel the system's performance and make micro-adjustments on the fly.
Industrial requirements are rarely static, and your equipment must adapt to evolving project scopes. Despite its fully enclosed design, the internal layout is masterfully optimized to support a wide array of modular upgrades. Whether you are outfitting a mobile maintenance fleet or establishing a stationary wash bay, the platform scales to meet your exact specifications.
Constant-Pressure Feed Integration: Can be equipped with an optional feed system to eliminate cavitation risks in environments with fluctuating municipal water supplies.
Integrated Fluid Reservoir: Supports the addition of a high-capacity onboard water tank, granting unparalleled autonomy for remote sites lacking immediate water access.
Versatile Spray Assemblies: Compatible with a diverse range of 60 MPa / 40 L/min rated lances, rotary nozzles, and automated surface crawlers.
Accessible Maintenance Bays: The enclosed canopy features strategically placed access panels, ensuring that routine oil changes and seal inspections are performed swiftly without dismantling the entire chassis.
Selecting the right industrial equipment supplier is a critical strategic decision that impacts your operational efficiency for years to come. As a premier manufacturer dedicated to heavy-duty hydraulic solutions, we go beyond merely assembling components; we engineer comprehensive productivity systems. Our rigorous quality assurance protocols ensure that every enclosed high-pressure unit leaving our facility is primed for immediate, relentless deployment.
Direct-from-Manufacturer Value: By sourcing directly from the engineering source, commercial buyers eliminate intermediary markups while gaining direct access to technical support.
Stringent Quality Control: Each unit undergoes exhaustive load testing and simulated environmental exposure before receiving final certification.
Global Parts Availability: We maintain an extensive inventory of standardized replacement parts, ensuring your maintenance teams are never left waiting.
Expert Consultation: Our technical engineers collaborate closely with procurement teams to verify that the equipment perfectly aligns with specific site requirements.
Long-Term Partnership: We provide comprehensive documentation, maintenance schedules, and dedicated after-sales support to maximize the lifecycle of your investment.
The enclosed platform is engineered with sophisticated airflow channels and thermal dissipation vents. The pure copper 4-pole motor operates efficiently within this environment, as the design actively draws in ambient air while expelling internal heat, preventing thermal throttling even during continuous-duty cycles.
While the chassis features a corrosion-resistant stainless steel finish and aluminum alloy bell housing, pumping highly corrosive fluids like saltwater requires specialized internal pump components. The standard configuration is designed for fresh industrial water; however, the 180-mesh filtration system provides an excellent baseline for water purity.
The DOL starting system is inherently robust and requires minimal maintenance compared to complex variable frequency drives. Routine inspections involve checking the integrity of the contactors, ensuring secure terminal connections, and verifying that the industrial coupling system remains properly aligned for smooth power transmission.
Absolutely. The system features an integrated regulating valve alongside the safety relief valve. This allows operators to precisely dial down the operational output from the maximum 500 bar threshold, making the unit highly versatile for delicate equipment maintenance or aggressive surface preparation.
Service intervals depend entirely on the quality of your inlet water supply. In environments with heavy particulate matter, daily visual inspections and flushing are recommended. The filter housing is designed for rapid access, allowing maintenance personnel to clear debris in minutes, thereby safeguarding the high-pressure plunger pump.
