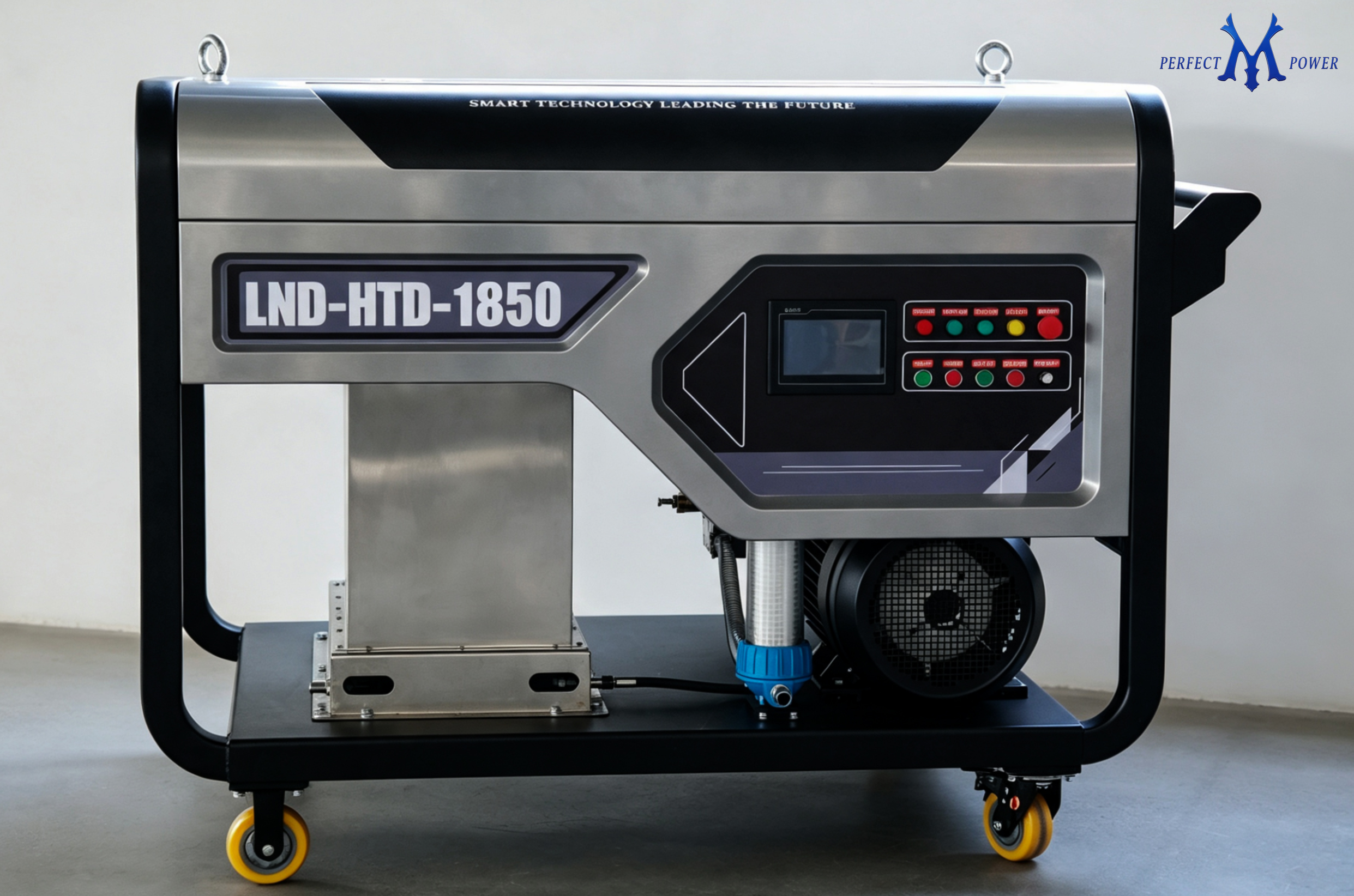

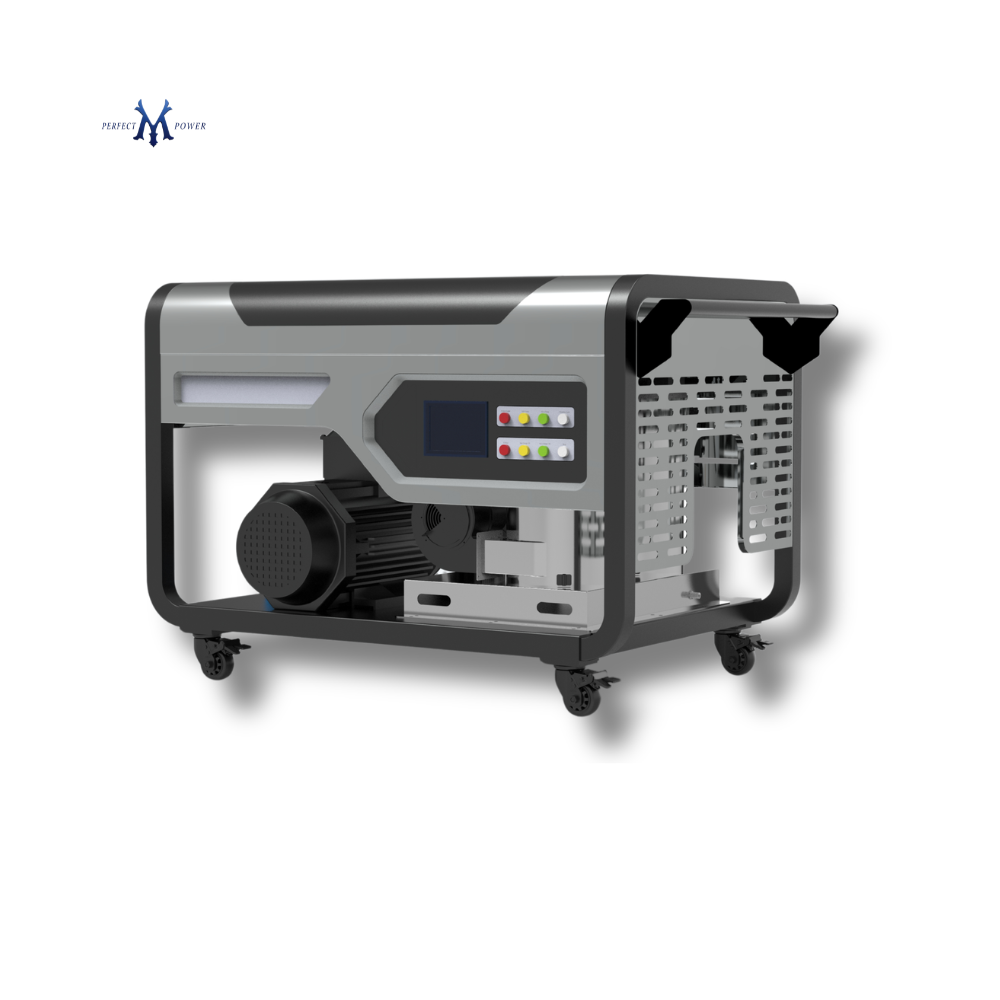

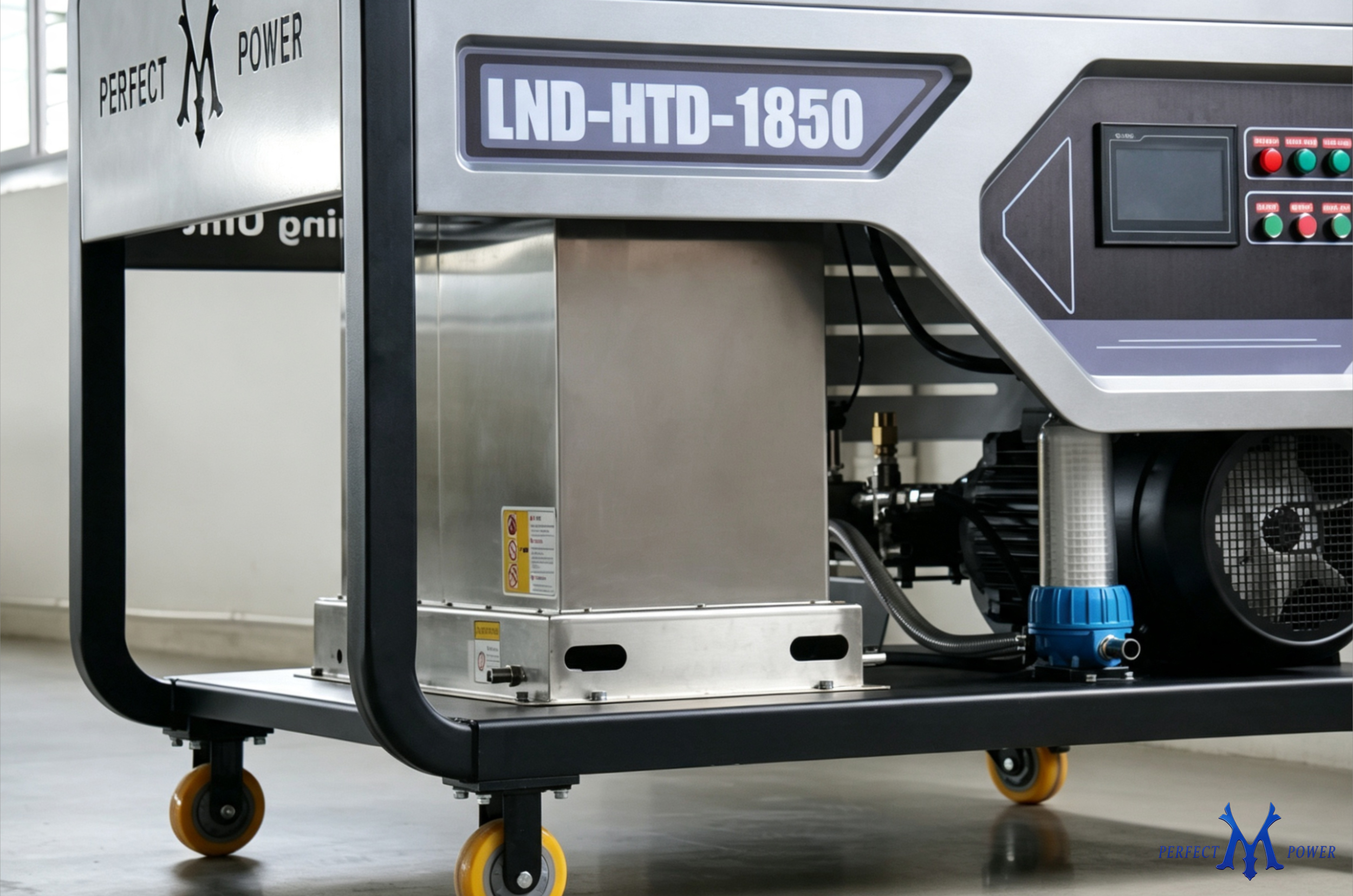

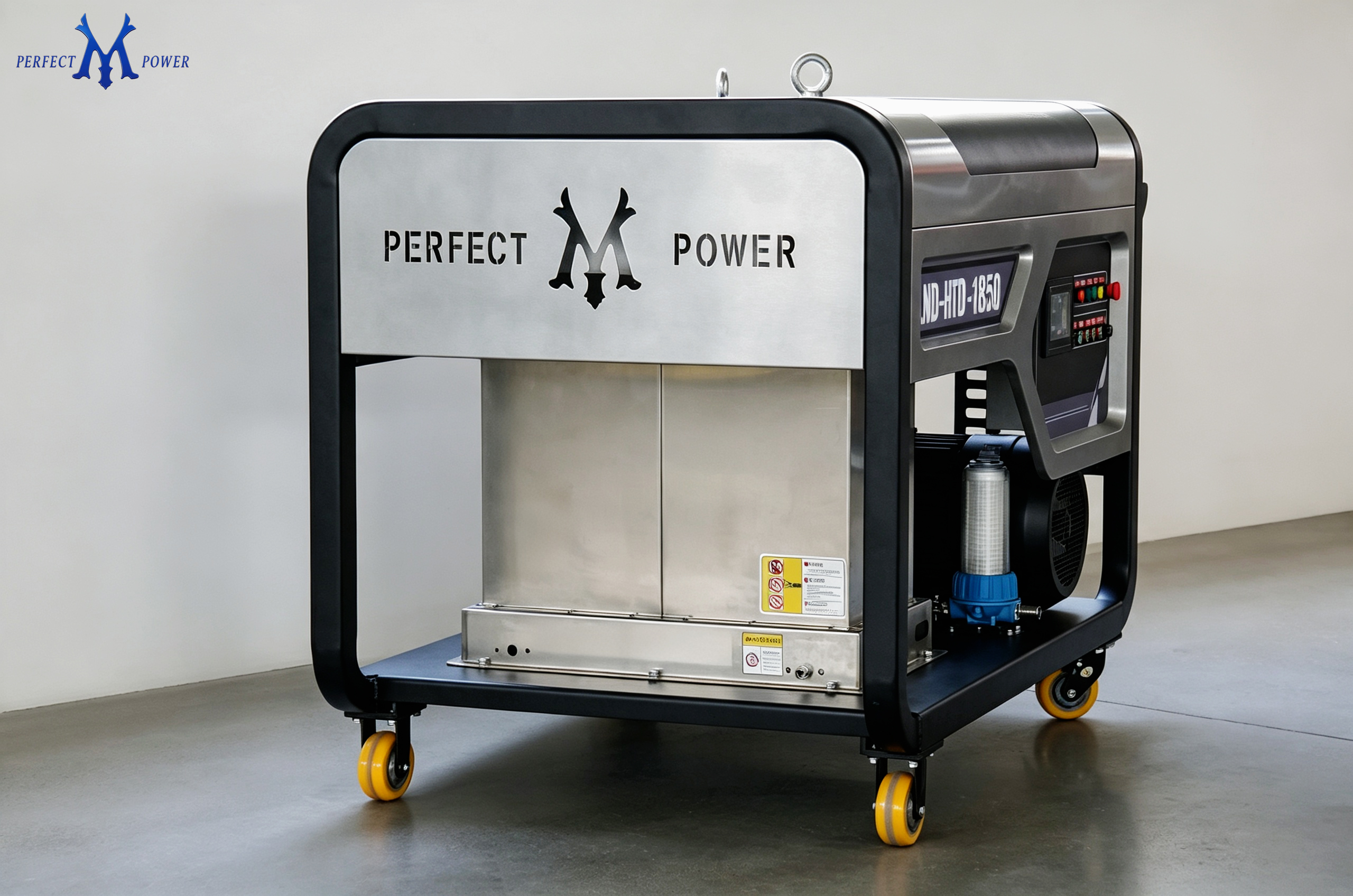

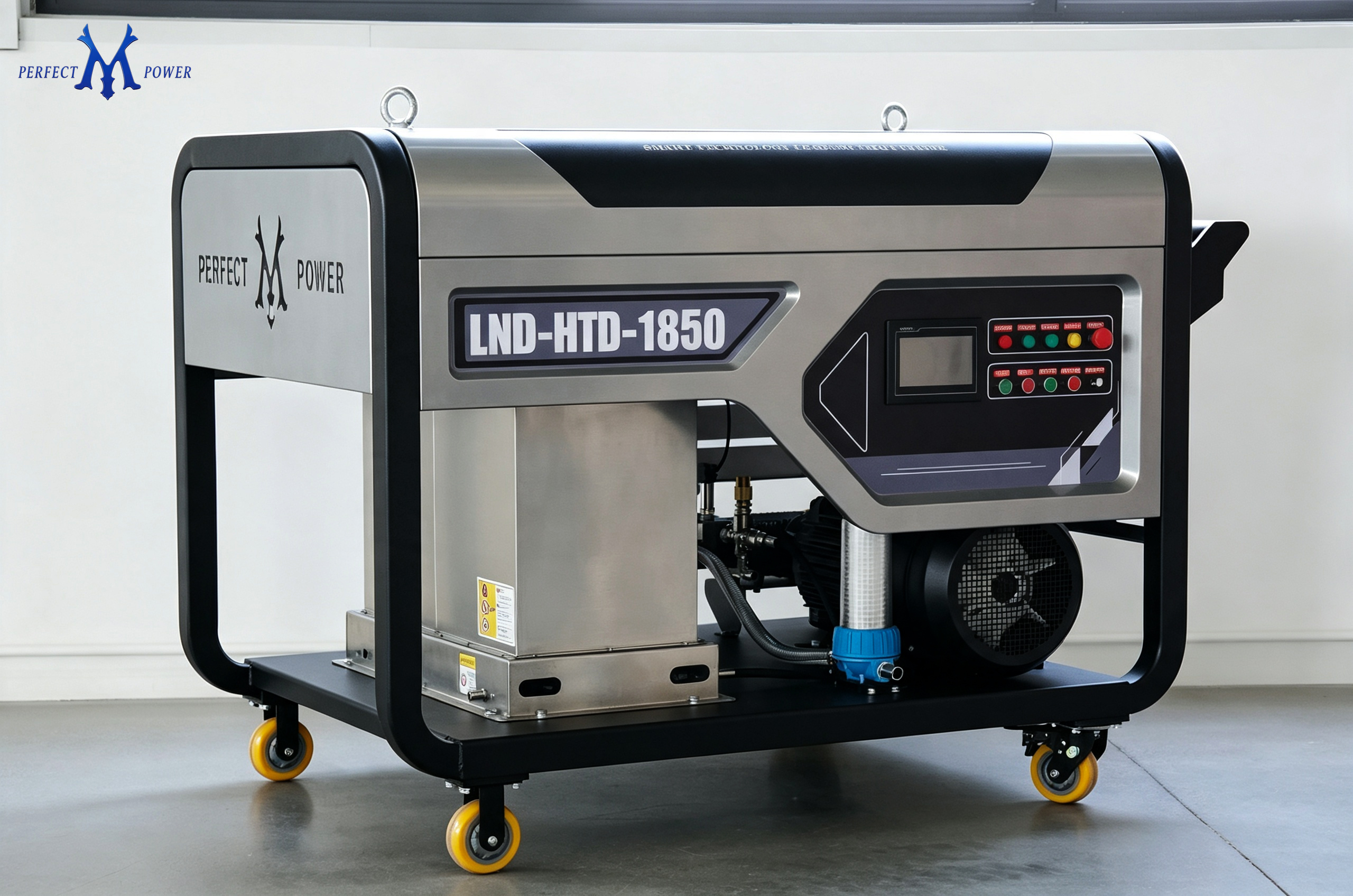

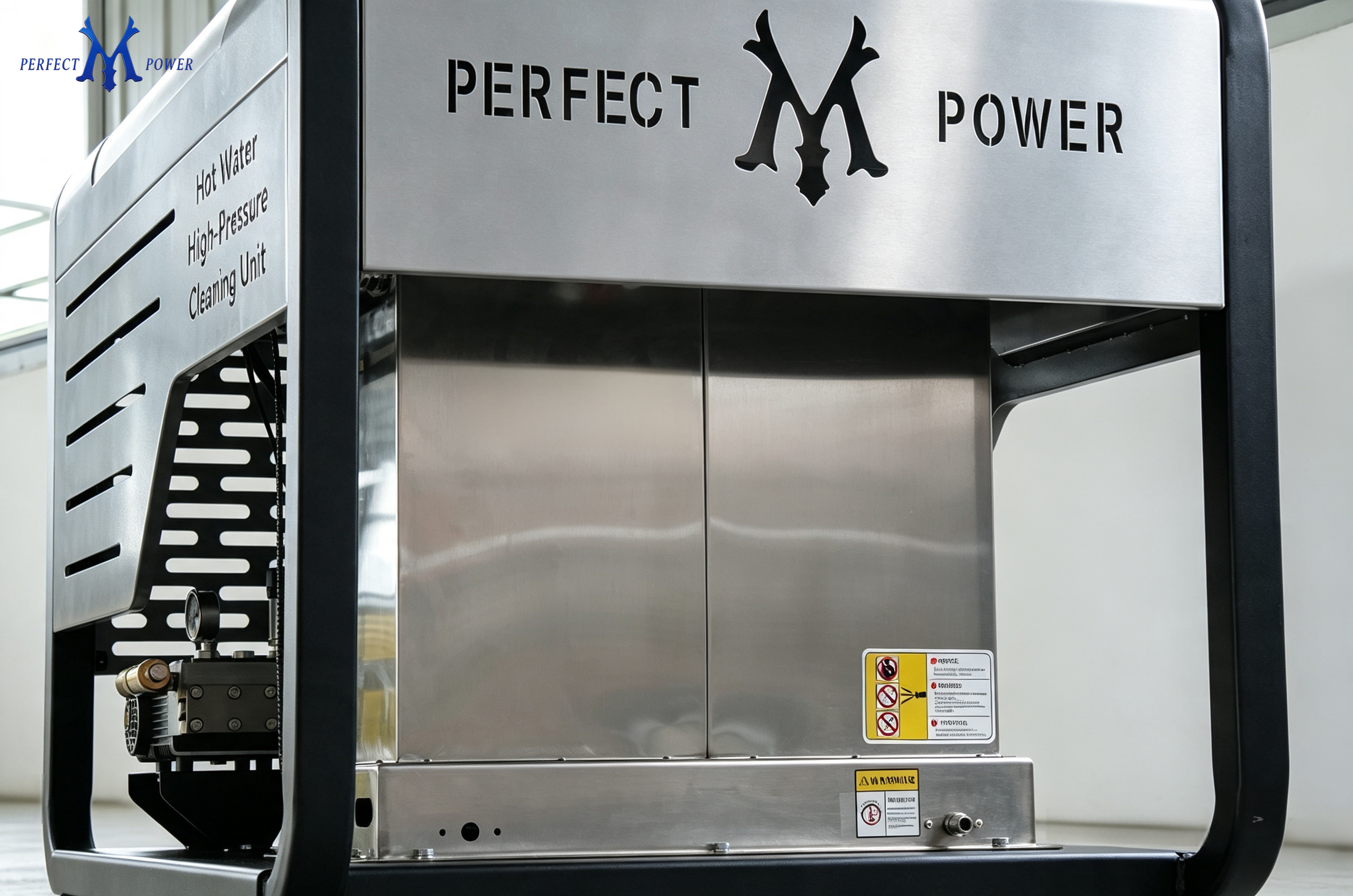

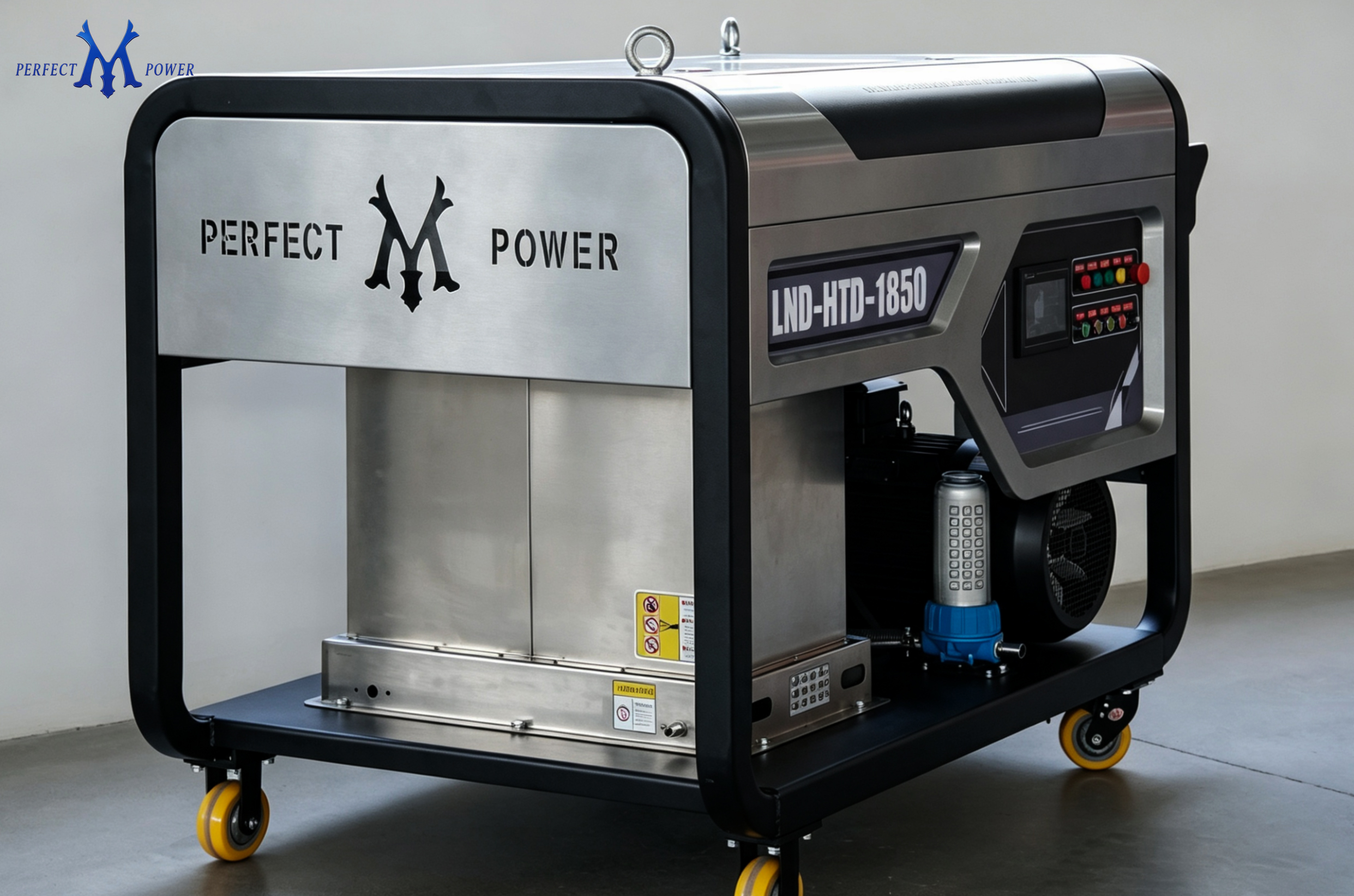

The LND-HTD-1850 is a 500 bar industrial hot water high-pressure water jetting system built for removing heavy stubborn grease and oil deposits. It features an easy-service open-frame structure for convenient routine maintenance and consistent hydraulic output performance.
Model | LND-HTD-1850 |
Flow Rate（L/min） | 18 |
Pressure（bar） | 500 |
Power（kW） | 22 |
Rotational Speed（rpm） | 1450 |
Length（mm） | 1720 |
Width（mm） | 1060 |
Height（mm） | 1250 |
Weight（kg） | 580 |
1. Wide-Range Temperature Control Module The system supports hot-water cleaning from 25°C to 90°C, covering daily warm-water washing, oil removal, sanitation, and high-temperature industrial cleaning applications. PID precision temperature control of ±0.5°C maintains stable outlet temperature and protects precision components, plastic production lines, coated surfaces, and other temperature-sensitive workpieces from thermal damage.

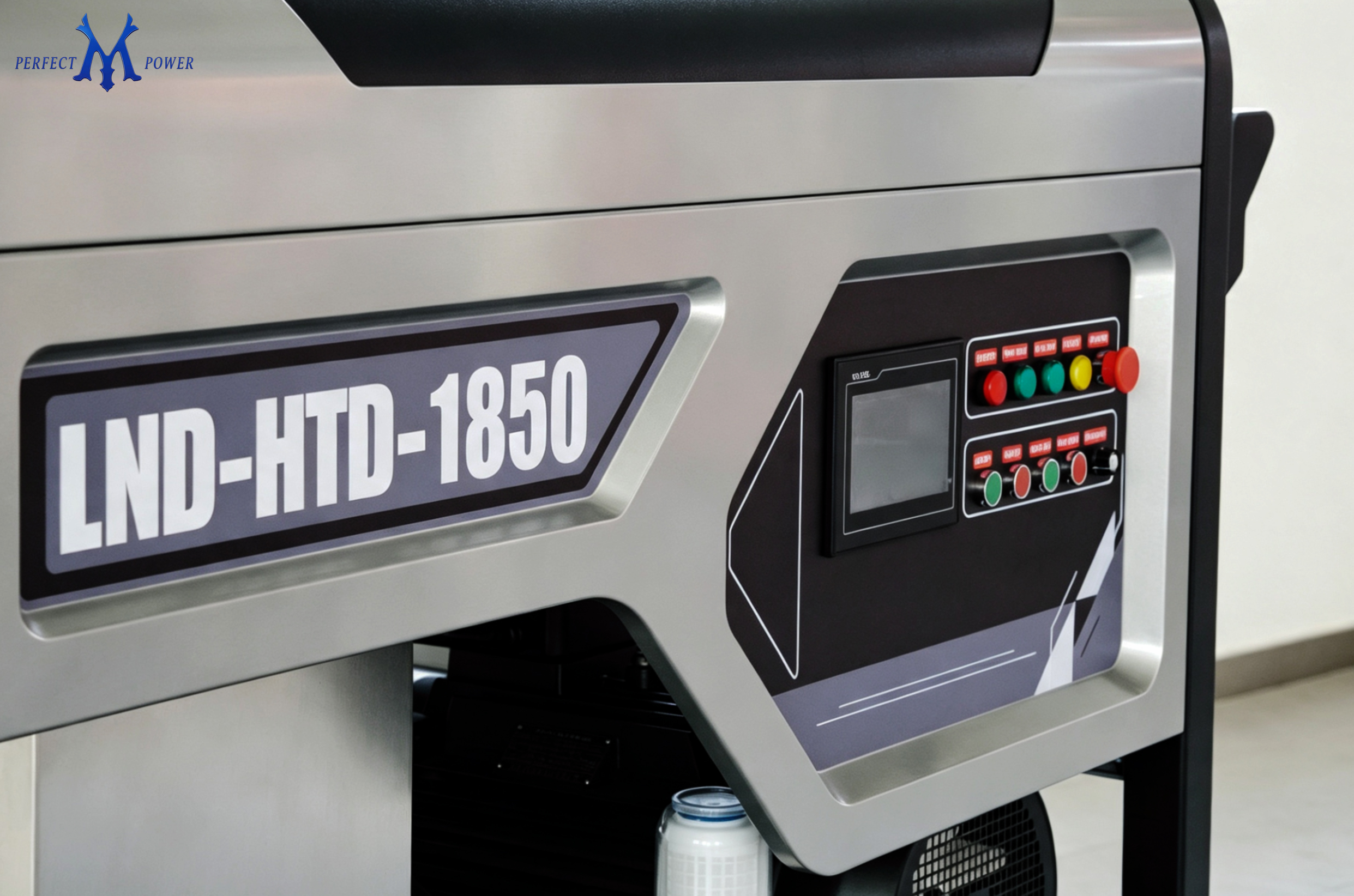

2. Intelligent Control Module The full series is equipped with a 7-inch high-definition smart touchscreen for intuitive operation and real-time monitoring. Key operating data is displayed at a glance - enabling operators to monitor machine status continuously, identify abnormal conditions early, and prevent component damage caused by excessive temperature or pressure:
·Oil temperature
·Working pressure
·Heating status
·Equipment running condition
·Fault warnings and safety alerts
3. Intelligent Dry-Burn Protection Module Every unit is equipped with an intelligent dry-burn protection system. When the spray gun is released, the heating system stops synchronously. If the machine detects insufficient water flow, no pressure, or abnormal operating conditions, the heating module shuts down automatically - preventing dry-burn damage to the heating unit, protecting the operator, and delivering protection performance that leads comparable products on the market. Designed for continuous industrial use with maximised equipment reliability and minimised failure risk.
4. Instant-Heating Energy-Saving Module The machine uses a 40-metre extended, integrally formed, seamless stainless-steel heating coil, engineered for fast heat transfer, stable performance, and long service life. Outperforming conventional carbon-steel heating tubes in corrosion resistance, the stainless-steel coil is compatible with industrial cleaning media including caustic soda solutions and citric acid solutions at 1%–5% concentration, as well as other compatible industrial cleaning agents subject to application review. During routine maintenance, approved chemical cleaning media can be circulated through the system to dissolve scale from the inner wall of the heating coil — maintaining heat-transfer efficiency, simplifying descaling operations, and significantly extending heating module service life.
5. Dual Heating Options: Diesel or Electric The full series is available in diesel heating or electric heating configurations, allowing users to select the best option for their operating environment. The diesel heating version is engineered for outdoor operation and mobile cleaning applications, fitted with an exhaust temperature-reduction system and dual dry-burn and over-temperature protection — suitable for heavy-duty outdoor cleaning, field maintenance, construction sites, industrial yards, and remote service work. The electric heating version eliminates on-site exhaust emissions and reduces energy consumption by up to 45% compared with traditional fuel-heated systems, depending on working conditions and electricity/fuel cost structure - suitable for enclosed workshops, clean production areas, food-processing facilities, and other emission-controlled environments. For explosion-proof areas, a dedicated certified configuration should be evaluated separately.
6. German Precision-Engineered - European Industrial-Grade Design The machine is equipped with the German precision-engineered PerfectPower high-pressure plunger pump, delivering superior sealing performance, strong impact resistance, and reduced operating noise for reliable performance across complex working conditions. The complete system is developed under European industrial design principles, engineered for continuous high-load operation, stable pressure output, operator safety, easy maintenance, a durable frame layout, and reliable performance in demanding industrial environments — making it the professional hot-water high-pressure cleaning system of choice for OEM partners, industrial distributors, rental companies, and end users requiring long-term operating reliability.
7. Full-Scenario Application - Energy-Saving and Sustainable Hot water dissolves and softens hardened grease and industrial contamination, reducing cleaning time by up to 50% in many applications and helping factories and workshops return to operation faster. High-temperature cleaning accelerates surface drying across floors, production areas, vehicles, equipment, and outdoor work sites. At temperatures above 85°C, hot-water cleaning delivers physical sanitation suitable for food processing, livestock farming, and facility maintenance — reducing detergent consumption by up to 60% depending on application, lowering chemical usage and wastewater treatment burden. The combination of high pressure and high temperature removes oil contamination thoroughly, leaving no surface residue after cleaning, supporting cleaner wastewater discharge, and meeting dual-carbon factory environmental compliance requirements. Long-term use delivers substantial reductions in cleaning costs, chemical consumption, and overall operational expenditure.
